ARISAKA OFFSET SCOUT MOUNT M-LOK

Arisaka's Patented Offset Scout Mount is specifically designed for the Surefire Scout Light M600 and M300 series lights, Modlite PLH and OKW lights, Arisaka 300, 600 and 18650 series lights, Streamlight Protac Rail Mount 1, 2 and HL-X (without laser) and Olight Odin. It replaces the standard Picatinny rail adapter with a low profile mount for M-Lok handguards. The Offset Scout Mount is extremely low profile, measuring less than 0.20 inches thick.

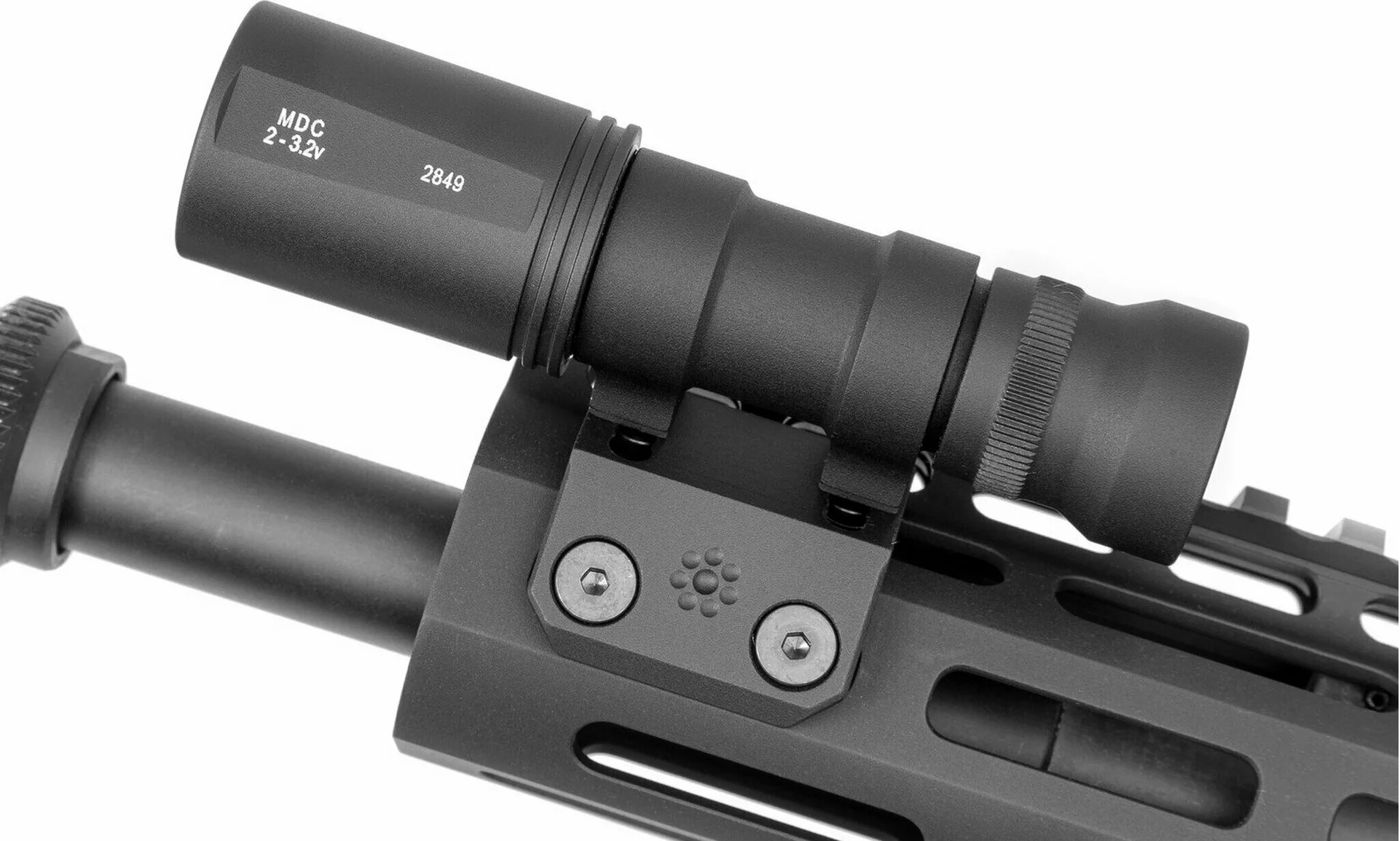

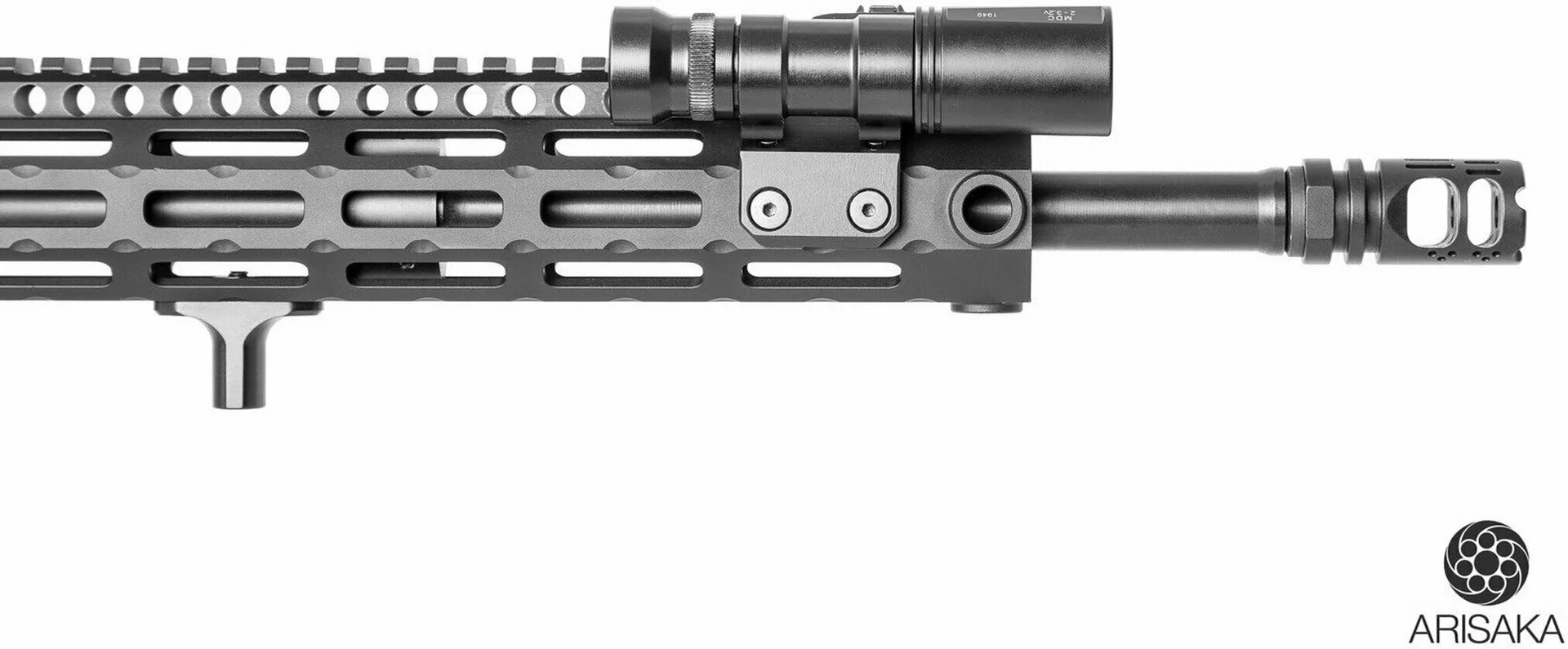

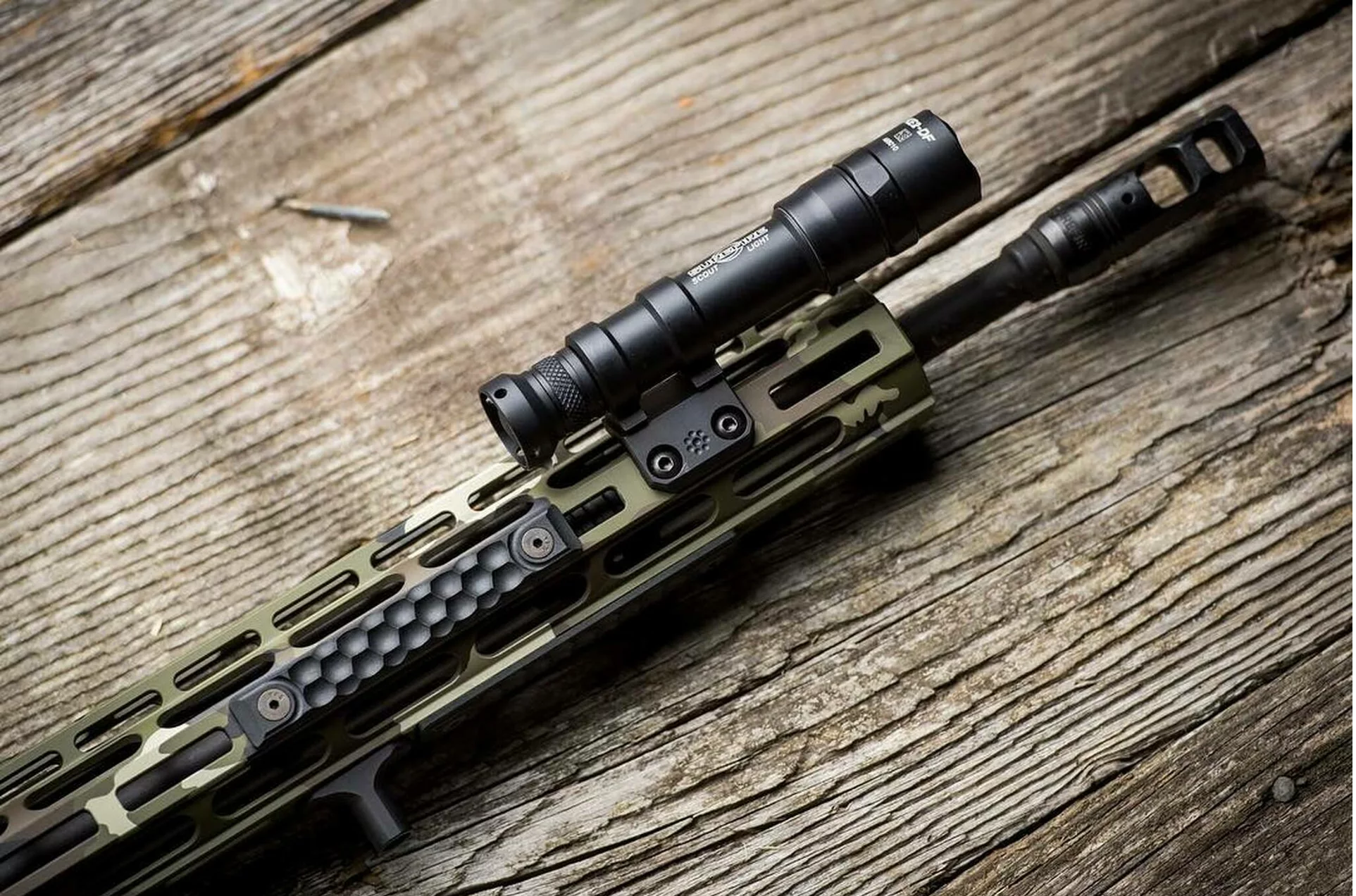

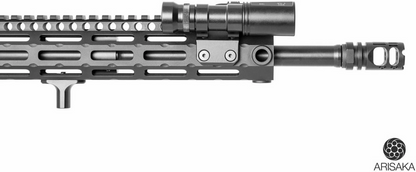

When used on the side mounting surfaces of M-Lok handguards, the Offset Scout Mount positions the light at a 45-degree angle, bringing it closer to the rail system. When facing up, the light is located at approximately the 1:30 or 10:30 o'clock positions. When facing down, the light is located at approximately the 4:30 or 6:30 o'clock positions.

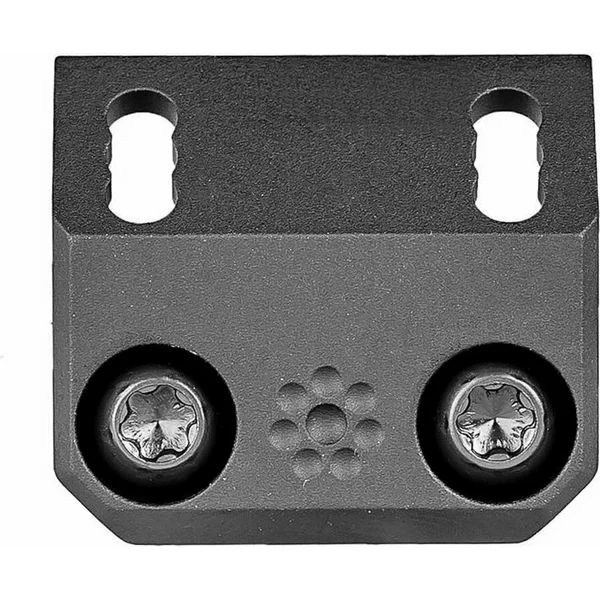

The Offset Scout Mount also offers three lateral mounting positions for the light body, allowing the light to be positioned closer or further from the top rail, front sights, or other accessories. Three positions are available, covering approximately 0.240 inches. When used with the Arisaka 300 Series Light Body or 600 Series Light Body, even more room is provided for larger front sights.

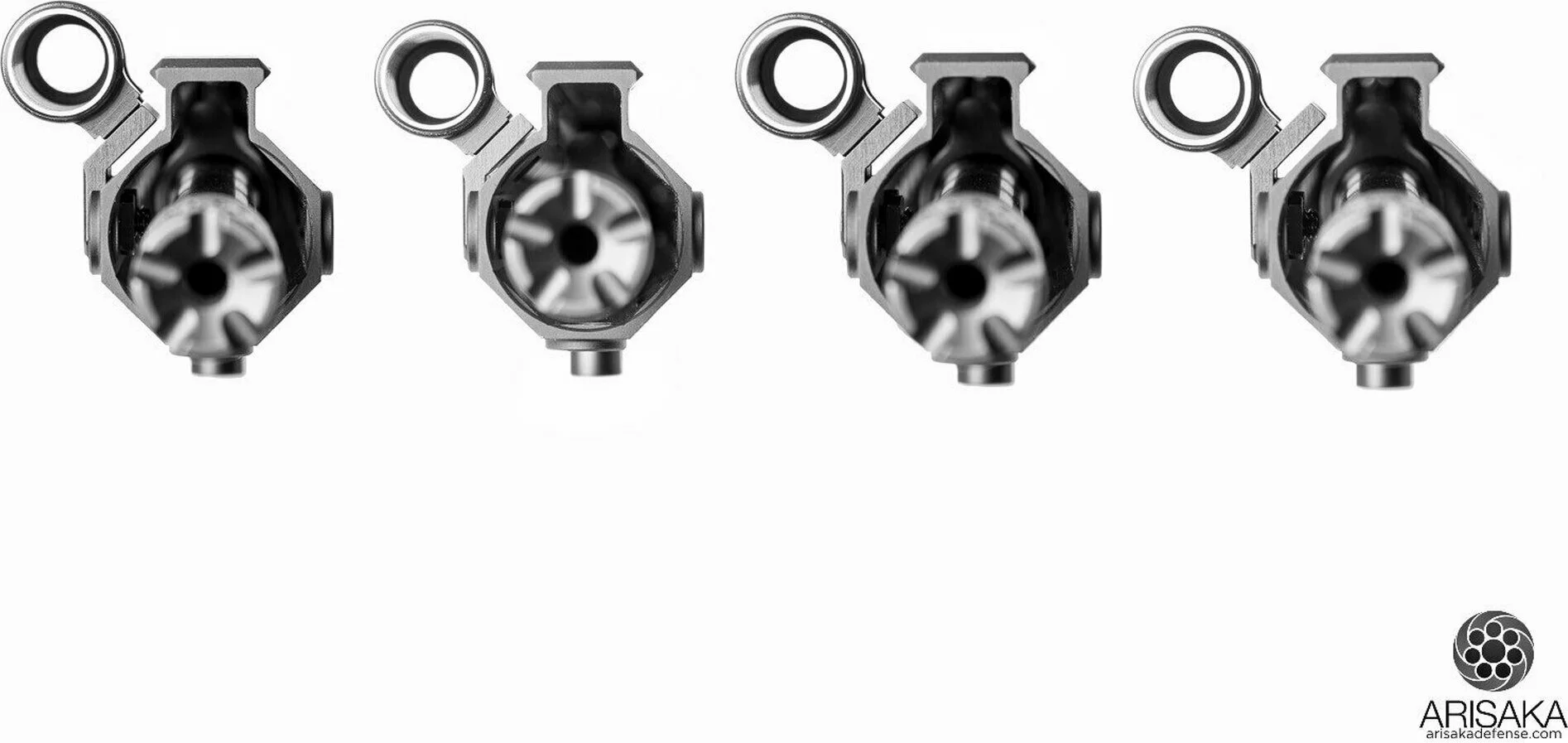

As shown in the pictures, the Offset Scout Mount is compatible with most M-Lok handguards, including the BCM MCMR, KAC URX4, and Geissele SMR MK8/14/16. It will not fit the profile of the Aero Precision Enhanced Gen 2, SIG MPX, or MCX Virtus handguards (unless using the MCX silencer flat handguard). Aero Precision R-One and S-One owners should use the Offset Scout Mount Galil/MPX. Aero Precision Enhanced Gen 2 owners should use the Offset Scout Mount Spear.

Compatibility: Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (without laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 series.

The M620, M951/2 and M961/2 series lights can also be used with the Offset Scout Mount by adding the Arisaka Offset M620 adapter.

• Length: 1.265 inches

• Weight: 0.4 oz (approx. 11.3 g)

• Distance from center of M-Lok screw at 45 degree angle: 0.405 inches

The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hardcoat anodized. Includes the necessary screws to attach the light body. Installation requires a T20 Torx or IP20 TorxPlus wrench (not included). A T9 Torx wrench is required to remove the original Picatinny mount from Surefire Scout Lights. Recommended torque: 30 in-lbs for M-Lok screws and 20 in-lbs for the light body screws with Loctite 222 or 243 threadlocker.

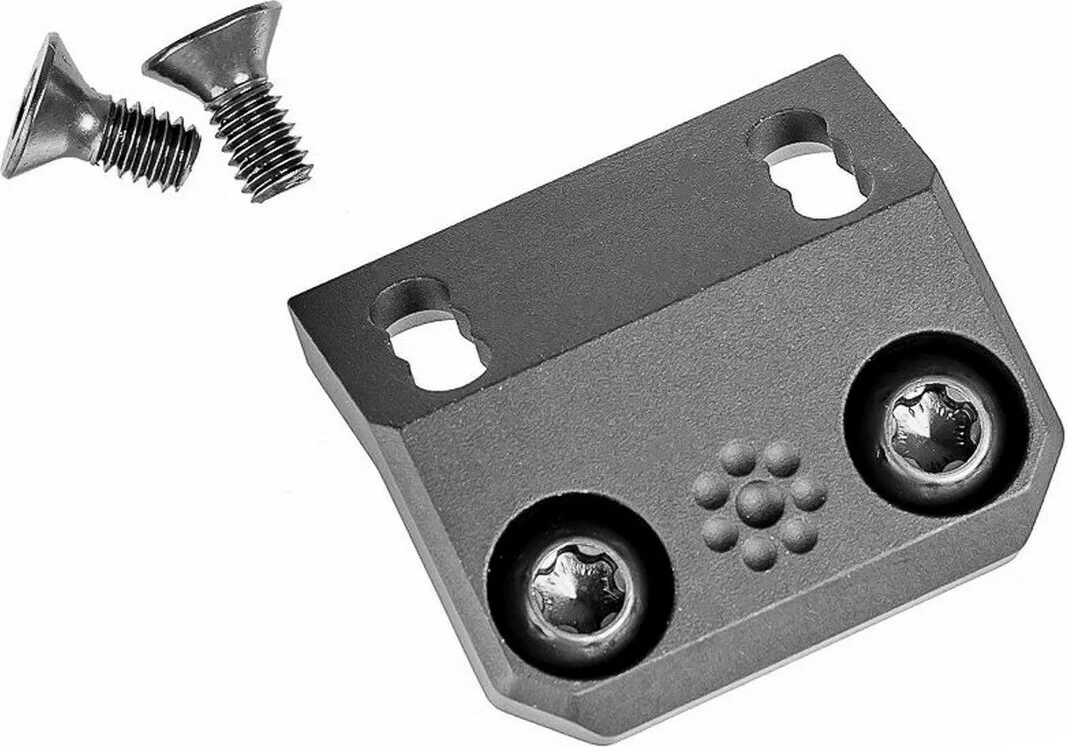

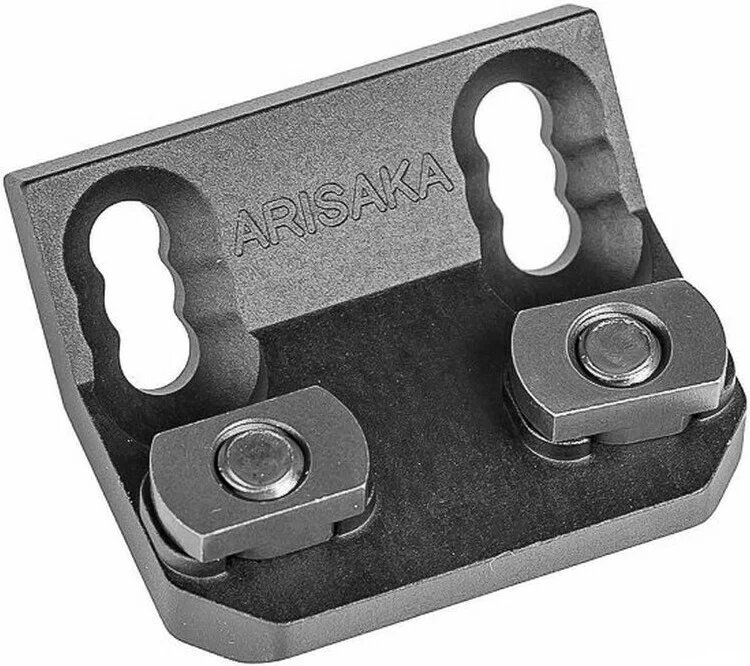

Fastening parts: Two M-Lok nuts, two 10-24x5/16” Torx button head screws, two 8-32x3/8” Torx flat head screws.

This product is protected by U.S. Patent No. 11385026 and other patents pending.
